Trace

Overview

The AWorld Trace module is a full-featured distributed tracing system built on OpenTelemetry, providing comprehensive observability capabilities for the AWorld framework. It offers flexible tracing configuration, automatic instrumentation, and manual tracing support, with compatibility for multiple backend storage and export options.

Core Features

• Built on the OpenTelemetry standard, ensuring compatibility with mainstream observability platforms
• Automatic instrumentation: Tracks key components (Agent, Tool, LLM, etc.) without code modification
• Manual span creation and management for fine-grained tracing control
• Built-in in-memory storage and Trace UI Server for quick inspection of trace data
• Seamless integration with third-party observability platforms (e.g., Logfire, Jaeger)
• Highly configurable to meet diverse use-case requirements

Main Components

• **TraceManager**: Core tracing manager responsible for creating and managing spans
• **ContextManager**: Handles propagation of tracing context across components and threads
• **Instrumentation**: Automatically instruments core framework components
• **OpenTelemetryAdapter**: Bridges AWorld’s tracing API with OpenTelemetry’s native APIs
• **TraceServer**: Built-in UI server for visualizing trace data

Quick Start

Enabling Tracing in AWorld

To enable tracing, configure ObservabilityConfig at application startup:

from aworld.trace.config import configure, ObservabilityConfig

# Configure tracing
config = ObservabilityConfig(
    trace_provider="otlp",
    trace_backends=["memory"],        # Use in-memory storage
    trace_server_enabled=True,        # Enable built-in Trace UI Server
    trace_server_port=7079            # UI server port
)

# Apply configuration
configure(config)

Viewing Traces via Built-in UI

Once the Trace UI Server is enabled, access traces at:
http://localhost:7079

The UI provides:

• List of all recorded traces
• Full call chain visualization for individual traces
• Detailed span information (attributes, status, duration)
• Time-based sorting and filtering

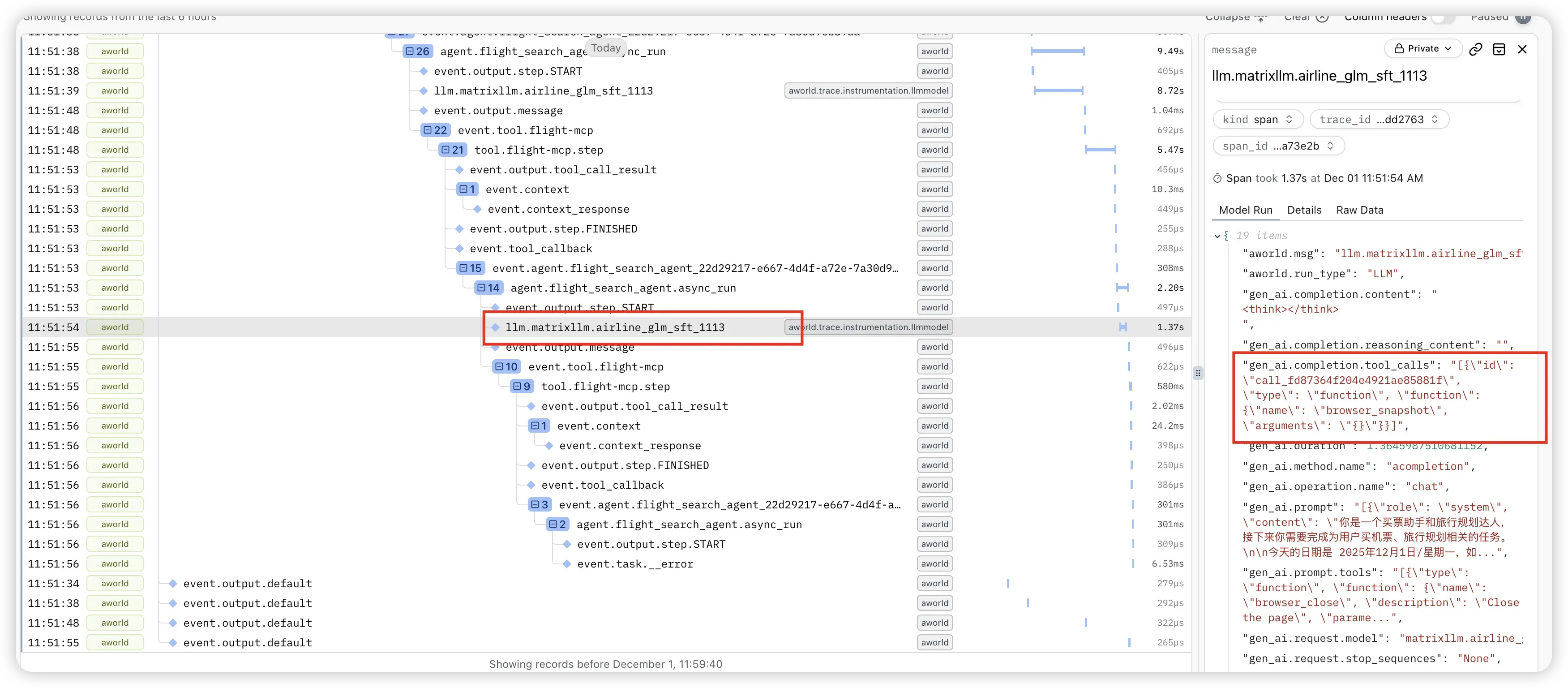

Interpreting Trace UI Data

During execution, AWorld automatically creates several core span types to track component behavior:

• Event Span
  • Name format: event.<event_type>
  • Description: AWorld is event-driven; each event execution is traced as a span prefixed with event. (e.g., event.output).
  • Key attributes:
    • event.topic: Event topic
    • event.payload: Event payload
    • event.sender / event.receiver: Source and destination
• Task Span
  • Name format: task.<session_id>
  • Description: Represents a complete task execution.
  • Key attributes:
    • task.id, task.input, task.is_sub_task
• Agent Span
  • Name format: agent.<agent_name>
  • Description: Traces an agent’s execution lifecycle.
  • Key attributes:
    • agent.name, agent.id, session.id, user.id
• Tool Span
  • Name format: tool.<tool_name> (for MCP tools, <tool_name> = MCP service name)
  • Description: Captures tool execution.
  • Key attributes:
    • tool.name, agent.name, agent.id, session.id, user.id
  • Viewing results: Check child span event.output.tool_call_result
• LLM Span
  • Name format: llm.<model_name>
  • Description: Records a single LLM invocation.
  • Key attributes:
    • gen_ai.prompt, gen_ai.prompt.tools
    • gen_ai.request.* (e.g., top_k)
    • gen_ai.completion.content, .reasoning_content, .tool_calls
    • gen_ai.duration, gen_ai.first_token_duration
    • Token usage: input_tokens, output_tokens, total_tokens

Core Concepts

Trace

A complete call chain composed of multiple spans, representing an end-to-end operation (e.g., one user task). Identified by a unique Trace ID.

Span

A single operation unit within a trace, representing a specific execution step. Contains:

• Name, start/end time, duration
• Key-value attributes
• Status (success/failure)
• Parent Span ID and list of child spans

TraceContext

Carries tracing metadata (Trace ID, Span ID, etc.) across services in distributed environments to link related spans.

TraceProvider

Factory for creating Tracer instances. AWorld abstracts tracing implementation, allowing pluggable providers (default: OpenTelemetry).

Tracer

Component that creates and manages spans in application code.

SpanConsumer

Processes span data for custom logic—e.g., exporting to backends or generating real-time agent trajectories.

Usage Example

from aworld.trace.span_consumer import SpanConsumer, register_span_consumer
from typing import Sequence

@register_span_consumer
class MySpanConsumer(SpanConsumer):
    def consume(self, spans: Sequence[Span]) -> None:
        for span in spans:
            print(f"Span processed: {span.get_name()}")

Instrumentation

Automatic tracing of core components via bytecode enhancement or decorators—no code changes needed. AWorld includes built-in instrumentors (all enabled by default):

• **EventBusInstrumentor**: Traces event execution and parent-child relationships
• **AgentInstrumentor**: Auto-traces agent runs
• **ToolInstrumentor**: Auto-traces tool executions
• **LLMModelInstrumentor**: Auto-traces LLM calls
• **ThreadingInstrumentor**: Propagates trace context across threads
• Web Framework Instrumentors:
  • FastAPIInstrumentor
  • FlaskInstrumentor
• **RequestsInstrumentor**: Traces outbound HTTP calls

Enabling Example (FastAPI)

from aworld.trace.instrumentation.fastapi import FastAPIInstrumentor

FastAPIInstrumentor().instrument()

Integration with Third-Party Observability Platforms

Built on OpenTelemetry and using the OTLP protocol (the de facto standard for trace data), AWorld integrates seamlessly with a wide range of observability platforms.

Commercial Platforms

Logfire (https://logfire.pydantic.dev)

1. Create a project on Logfire and obtain a Write Token
2. Configure AWorld:

from aworld.trace.config import configure, ObservabilityConfig

config = ObservabilityConfig(
    trace_provider="otlp",
    trace_backends=["logfire"],
    trace_base_url="https://logfire-us.pydantic.dev",
    trace_write_token="your-logfire-write-token"
)

configure(config)

Open-Source Platforms

Jaeger (https://www.jaegertracing.io/)

Deploy Jaeger per official docs, then configure AWorld:

config = ObservabilityConfig(
    trace_provider="otlp",
    trace_backends=["other_otlp"],
    trace_base_url="http://localhost:4317",  # Jaeger OTLP endpoint
    trace_write_token=None
)

configure(config)

Custom Tracing

Using Context Manager

import aworld.trace as trace

with trace.span("custom_operation", attributes={"custom_attr": "value"}):
    result = perform_custom_operation()

Decorator Approach

@trace.func_span("custom_function", attributes={"function_type": "business"}, extract_args=True)
def custom_function(param1, param2):
    return result
# `extract_args=True` logs function arguments as span attributes (default: False)

Adding Attributes to Current Span

current_span = trace.get_current_span()
current_span.set_attribute("custom_key", "custom_value")

Manual Span Lifecycle

span = trace.span("manual_operation")
try:
    result = perform_operation()
    span.set_status("OK")
finally:
    span.end()

Advanced Features

Auto-Tracing Configuration

Automatically trace all function calls in specified modules:

trace.auto_tracing(
    modules=["my_module", "another_module"],
    min_duration=0.1  # Only trace functions taking >100ms
)

Trace Namespace Isolation

Isolate traces from different applications using environment variables:

os.environ["MONITOR_SERVICE_NAME"] = "otlp_example"

Integration with Other Trace Propagation Protocols

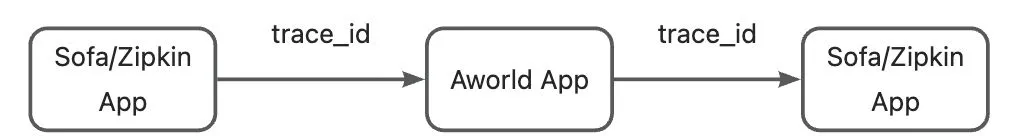

By default, AWorld uses OpenTelemetry’s W3C TraceContext propagation. To interoperate with systems using other protocols (e.g., Zipkin B3, SOFATracer), implement custom propagators.

Core Concepts

• **Propagator**: Interface for injecting/extracting trace context
• **TraceContext**: Holds trace_id, span_id, flags, etc.
• **Carrier**: Transport medium (e.g., HTTP headers, message headers)

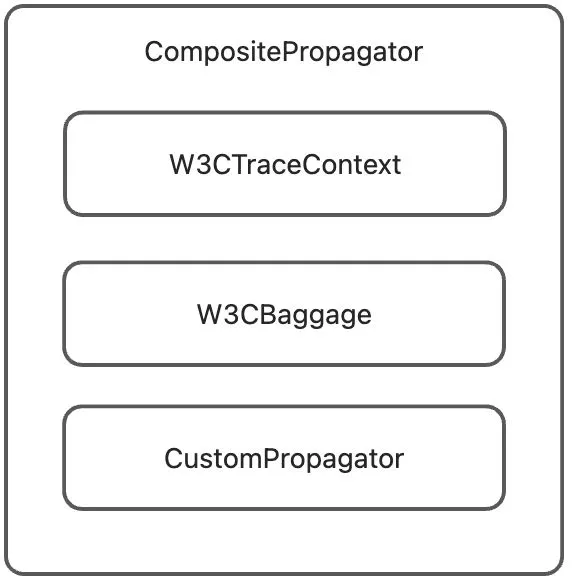

Architecture

AWorld uses a **CompositePropagator** to support multiple protocols simultaneously.

Implementing a Custom Propagator

1. Subclass **Propagator**:

from aworld.trace.base import Propagator, TraceContext, Carrier
from typing import Optional

class CustomTracePropagator(Propagator):
    _CUSTOM_TRACE_ID_HEADER = "X-Custom-Trace-ID"
    _CUSTOM_SPAN_ID_HEADER = "X-Custom-Span-ID"
    _CUSTOM_FLAGS_HEADER = "X-Custom-Flags"

    def extract(self, carrier: Carrier) -> Optional[TraceContext]:
        trace_id = self._get_value(carrier, self._CUSTOM_TRACE_ID_HEADER)
        span_id = self._get_value(carrier, self._CUSTOM_SPAN_ID_HEADER)
        flags = self._get_value(carrier, self._CUSTOM_FLAGS_HEADER) or "01"

        if not trace_id or not span_id:
            return None

        return TraceContext(
            trace_id=trace_id,
            span_id=span_id,
            trace_flags=flags,
            version="00",
            attributes={"custom_protocol": "v1"}
        )

    def inject(self, trace_context: TraceContext, carrier: Carrier) -> None:
        if not trace_context:
            return
        carrier.set(self._CUSTOM_TRACE_ID_HEADER, trace_context.trace_id)
        carrier.set(self._CUSTOM_SPAN_ID_HEADER, trace_context.span_id)
        carrier.set(self._CUSTOM_FLAGS_HEADER, trace_context.trace_flags)
        if "custom_protocol" in trace_context.attributes:
            carrier.set("X-Custom-Protocol-Version", trace_context.attributes["custom_protocol"])

1. Register the Propagator:

from aworld.trace.propagator import get_global_trace_propagator, CompositePropagator

global_propagator = get_global_trace_propagator()
propagators = list(global_propagator._propagators) if isinstance(global_propagator, CompositePropagator) else [global_propagator]

propagators.append(CustomTracePropagator())
new_propagator = CompositePropagator(propagators)

# Replace global propagator
from aworld.trace.propagator import _GLOBAL_TRACE_PROPAGATOR
_GLOBAL_TRACE_PROPAGATOR = new_propagator

This enables seamless trace context propagation between AWorld and external systems using non-OpenTelemetry protocols.
